CULVERT Regional Dashboard

Select a Region

Choose from available regions to explore detailed watershed delineation and vulnerability assessments.

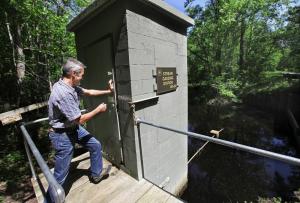

Santee Experimental Forest

Santee Experimental Forest

Comprehensive watershed analysis and culvert vulnerability assessment for the Santee Experimental Forest region in South Carolina.

Explore Region

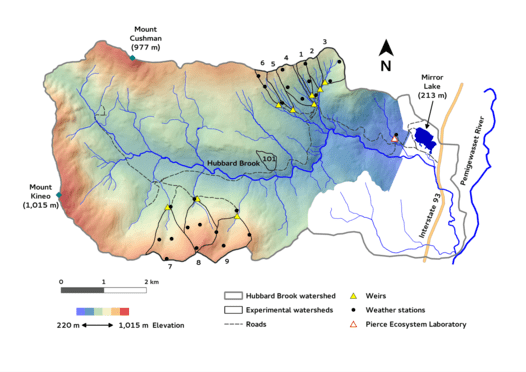

Hubbard Brook

Hubbard Brook Experimental Forest

Long-term ecosystem research site in New Hampshire's White Mountains, focusing on northern hardwood forest watersheds.

Coming Soon
Tallulah River, Georgia

Tallulah River, Georgia

Comprehensive watershed analysis and culvert vulnerability assessment for the Southeastern Appalachian watershed characterized by steep terrain.

Explore Region
Tallahassee Forest

Tallahassee Experimental Forest, Florida

Longleaf pine ecosystem research site in north Florida, examining watershed dynamics and storm water management.

Coming Soon

Region Map

Watershed analysis and vulnerability assessment

Map Layers Explanation
Spatial Data Layers

Boundary - Study area boundaries
Road Layer - Road network data
All Watersheds (WS) - Complete watershed delineation
WS Filtered by Area - Watersheds meeting size criteria
Unflagged WS - Watersheds passing quality checks and meeting size criteria
Flagged WS - Watersheds requiring review
Breaklines - Terrain break features
Uploaded Road Stream Crossing (RSC) Locations - User-provided Road-stream intersection points
RSC Snapped to Road Layer - Adjusted crossing locations
Final Road-Stream Intersections - Validated crossing points
RSC Filtered by WS Area - Crossings in valid watersheds meeting size criteria
Unflagged RSC - Quality-approved crossing points in valid watersheds meeting size criteria

Analysis Results

RF Hydrologic Vulnerability - Hydrologic Vulnerability Assessment using Regional Frequency Analysis
RM Hydrologic Vulnerability - Hydrologic Vulnerability Assessment using Rational Method Analysis
GPDM Hydrologic Vulnerability - Hydrologic Vulnerability Assessment using Graphical Peak Discharge Method
SBEVA Hydro-geomorphologic Vuln. - Hydro-geomorphologic Vulnerability Assessment using Stream Bank Erosion Vulnerability Assessment Method
RUSLE Hydro-geomorphologic Vuln. - Hydro-geomorphologic Vulnerability Assessment using Revised Universal Soil Loss Equations
WDFM Hydro-geomorphologic Vuln. - Hydro-geomorphologic Vulnerability Assessment using Debris Flow Model analysis
EHVI Hydro-geomorphologic Vuln. - Hydro-geomorphologic Vulnerability Assessment using Ensemble Vulnerability Index

Risk Indicators

Hydrologic Risk: Red (Vulnerable: Peak Discharge >= Culvert's Discharge Capacity), Green (Not Vulnerable), White (Not Applicable)
Hydrogeomorphologic Risk: Blue (Very Low: 0>=Score<1), Green (Low: 1>=Score<2), Yellow (Moderate: 2>=Score<3), Orange (High: 3>=Score<4), Red (Very High: 4>=Score<=5)
